Purple Golden Solar Vacuum Tube

Purple Golden Solar Vacuum TubeSolar vacuum tube can be classified into three categories according to the crafts: Normal Solar Vacuum Tube, Three Layer Solar Vacuum Tube and Purple Golden Solar Vacuum

    1. Detailed information

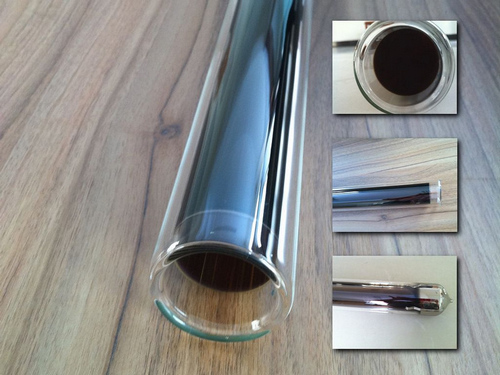

    Purple Golden Solar Vacuum Tube

    Solar vacuum tube can be classified into three categories according to the crafts: Normal Solar Vacuum Tube, Three Layer Solar Vacuum Tube and Purple Golden Solar Vacuum Tube.

    Comparing with Normal Solar Vacuum Tube, Purple Golden Solar Vacuum Tube has the different membrane structure, which contains Infrared-reflection layer, Absorbance layer and Anti-reflection layer. What’s more, there are two layers in Absorbance layer, which contributes to the higher absorptive ratio and lower emission ratio. It has the very excellent efficiency of absorbing the heat.

      Purple Golden Solar Vacuum Tube is made on the basis of Three Layer Solar Vacuum Tube, the difference lies in the color of coating material on outside tube. Besides, the time of metallic-membrane plating is comparatively longer than others, the chemical compound in the absorption layer keeps very pure, which invariably leads to the high absorption rate.

    Specification:



    Structure

    All-Glass Double Tube Co-Axial Structure

    Glass Material

    High Borosilicate 3.3 Glass

    External Pipe Diameter & Thickness



    dia.=47±0..5mm  &=1.6mm,    dia.=58±0.5mm  &=1.6mm,

    dia.=70±0.5mm  &=2.0mm,



    Internal Pipe

    Diameter & Thickness

    dia.=37±0.7mm  &=1.6mm,    dia.=47±0.7mm  &=1.6mm, dia.=58±0.7mm  &=2.0mm,

    Pipe Length

    800,1200,1500mm, 1600mm, 1800mm, 1900mm, 2000mm,2100mm

    Absorptive Coating Property

    Structure

    Cu/SS-ALN(H)/SS-ALN(L)/ALN

    Sediment Method

    Three Layer Magnetron Sputtering Plating

    Specific Absorption

    as=0.93~0.96(AM1.5)

    Emission Ratio

    0.04~0.06(80°C±5°C)

    Vacuum

    P≤5.0×10-3Pa

    Idle Sunning Property

    Y= 260 ~ 300m²°C/KW

    Solar Irradiation for Obtaining a Preset Water Temperature

    H≤4.7 MJ/ m²(dia.58)

    H=3.7~4.2 MJ/ m²

    H≤3.7 MJ/ m²(dia.47)

    H=2.9~3.2 MJ/ m²

    Average Heat Loss Coefficient

    Ult=0.4~0.6W/( m².°C)

    Pressure-Endure Ability

    0.6Mpa

    Hail-Endure Ability

    30mm

    Lifetime

    15years
