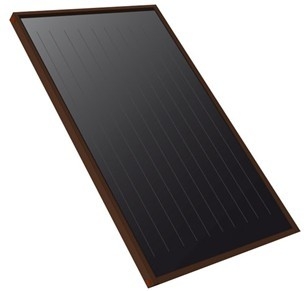

Flat Plate Solar Collector

Flat Plate Solar Collector

While the basic flat plate design has been around for a long time, and is the most widely used type of solar thermal panel

for domestic hot water supply, not all collectors are designed and made alike.Choice of material and design aspects can

greatly affect not only the solar thermal performance but also the reliability when operating in many varied environmental

conditions. Mayca has chosen only the highest quality materials to ensure reliable, efficient operation and collector longevity.

KEY SPECIFICATION:

Absorber Coating: Nickel Bottom Coating+ Selective Black Chrome Surface
Optical Performance: Absorptive: 94%/ Emittance: 10%
Frame Casing: Anodized Aluminum Alloy.
Cover Glass: 4mm Pattern Tempered Glass Or 4mm Low Iron Tempered Patterned Glass
Insulation: 30-50mm High-density Fiberglass Board
Back Sheet: 0.5mm Galvanized Sheet
Sealing Profile: EPDM Sealing Stripe
External Dimension: 2000*1000*80mm (L*W*H)
Gross Aperture Area: 2㎡/1.85㎡
Test Pressure: 1.6Mpa Maximum
Operation Temperature: 180℃

Feature:
Absorption≥92±2%, Emission≦10±2%
Strong Welding Property And Conductivity
Worry-free From Hails Or Other Terrible Weathers
Durable And Corrosion-resistant Material Makes Your Maintenance Cost Low
Easy Installation And Connection With Simple Structure
No Working Angle Limitation
